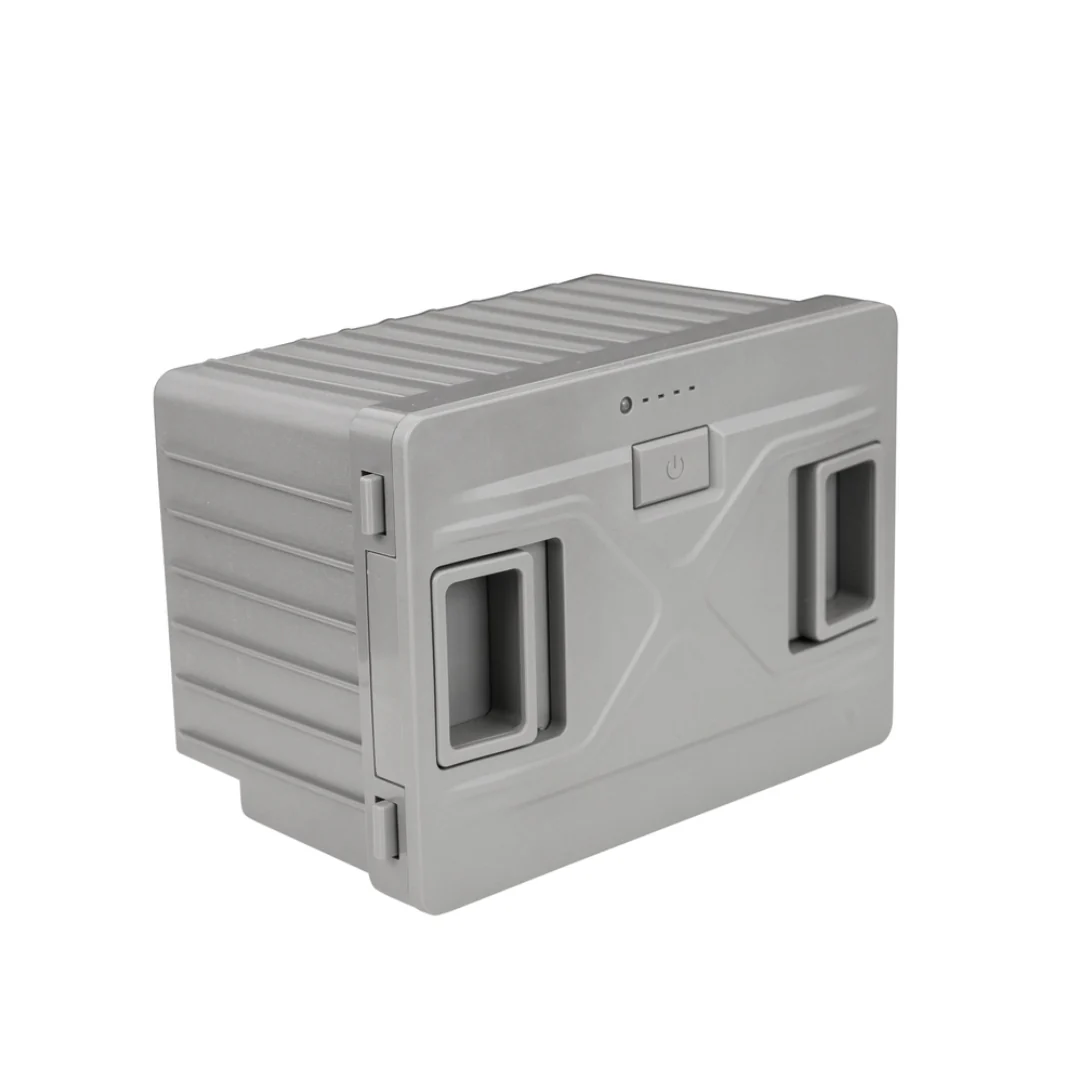

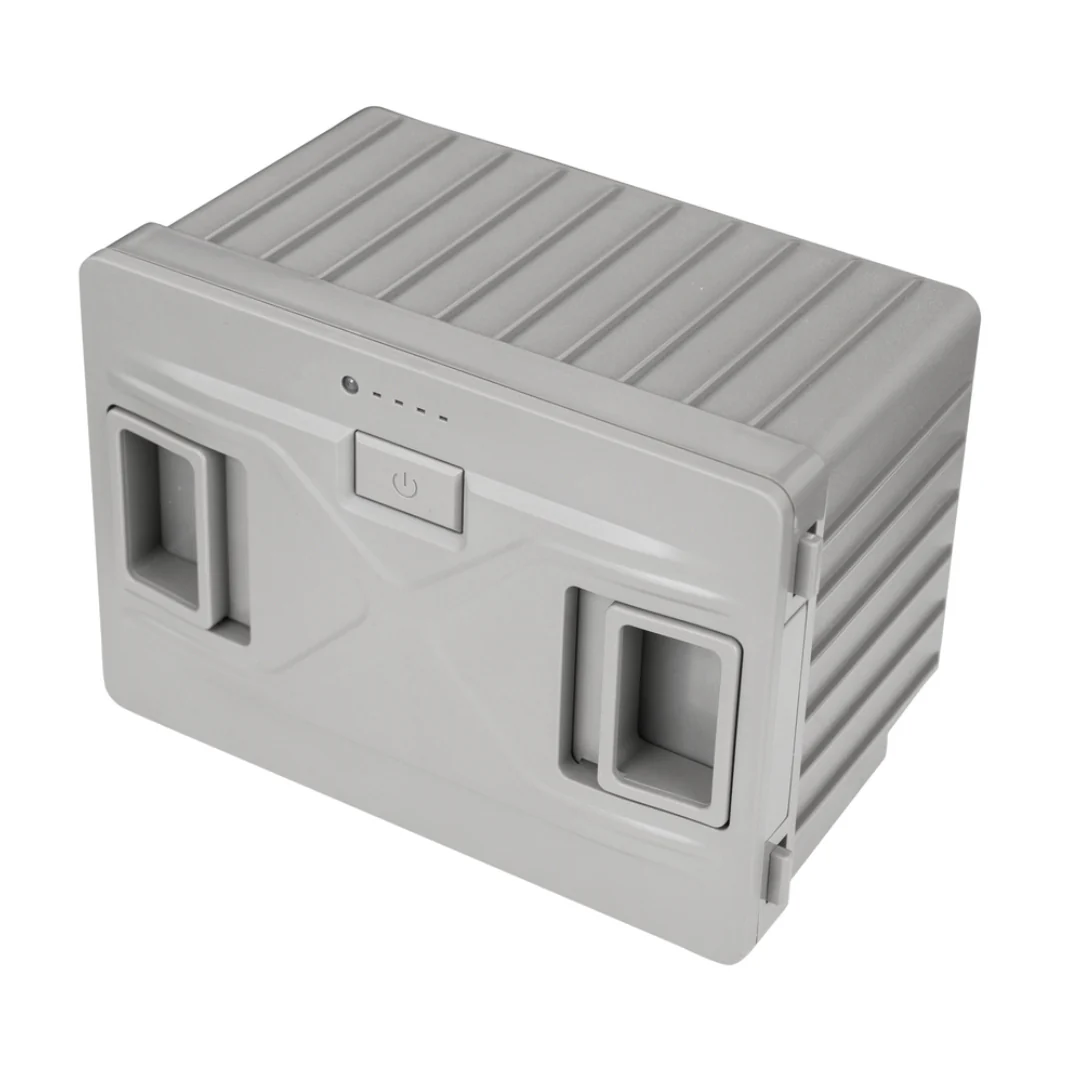

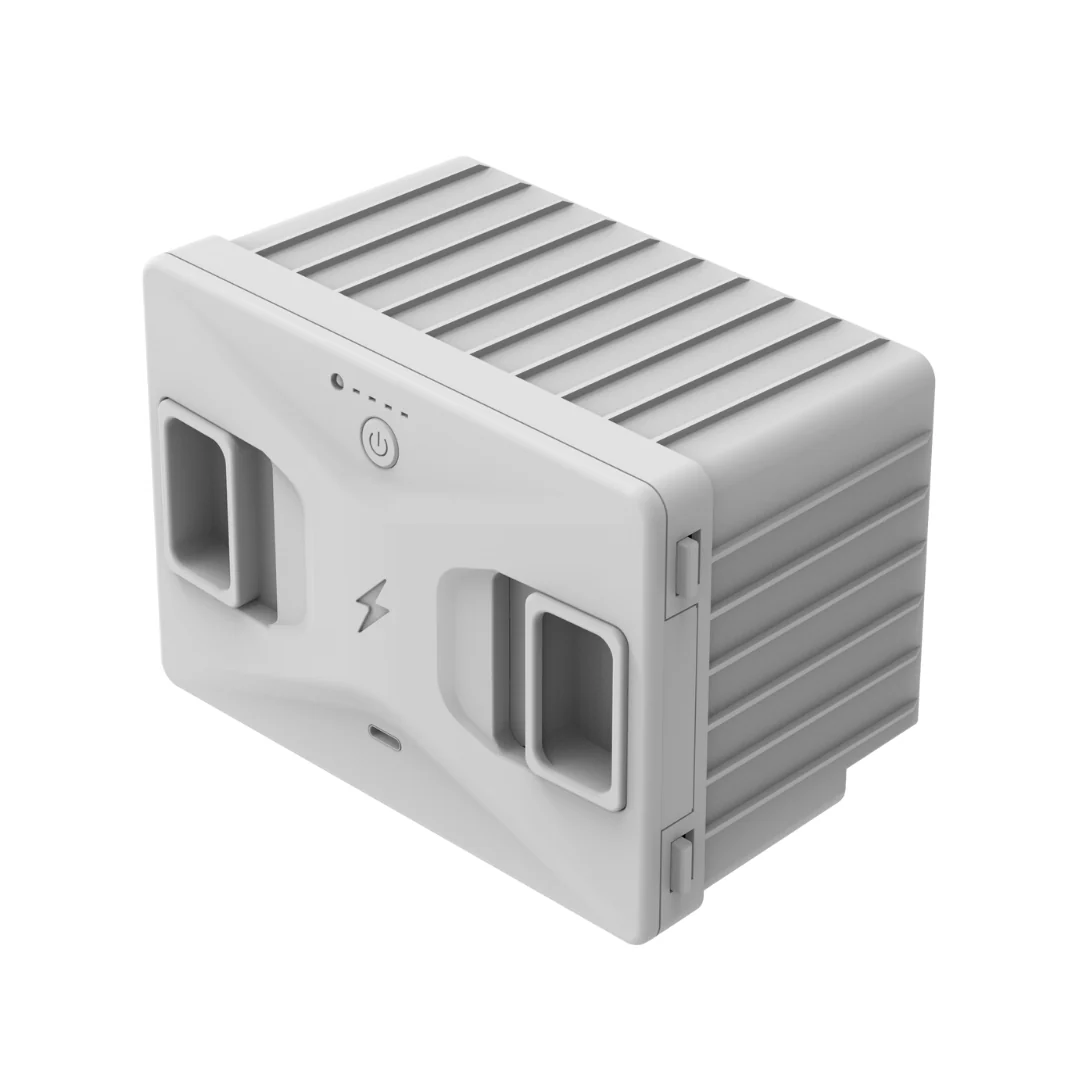

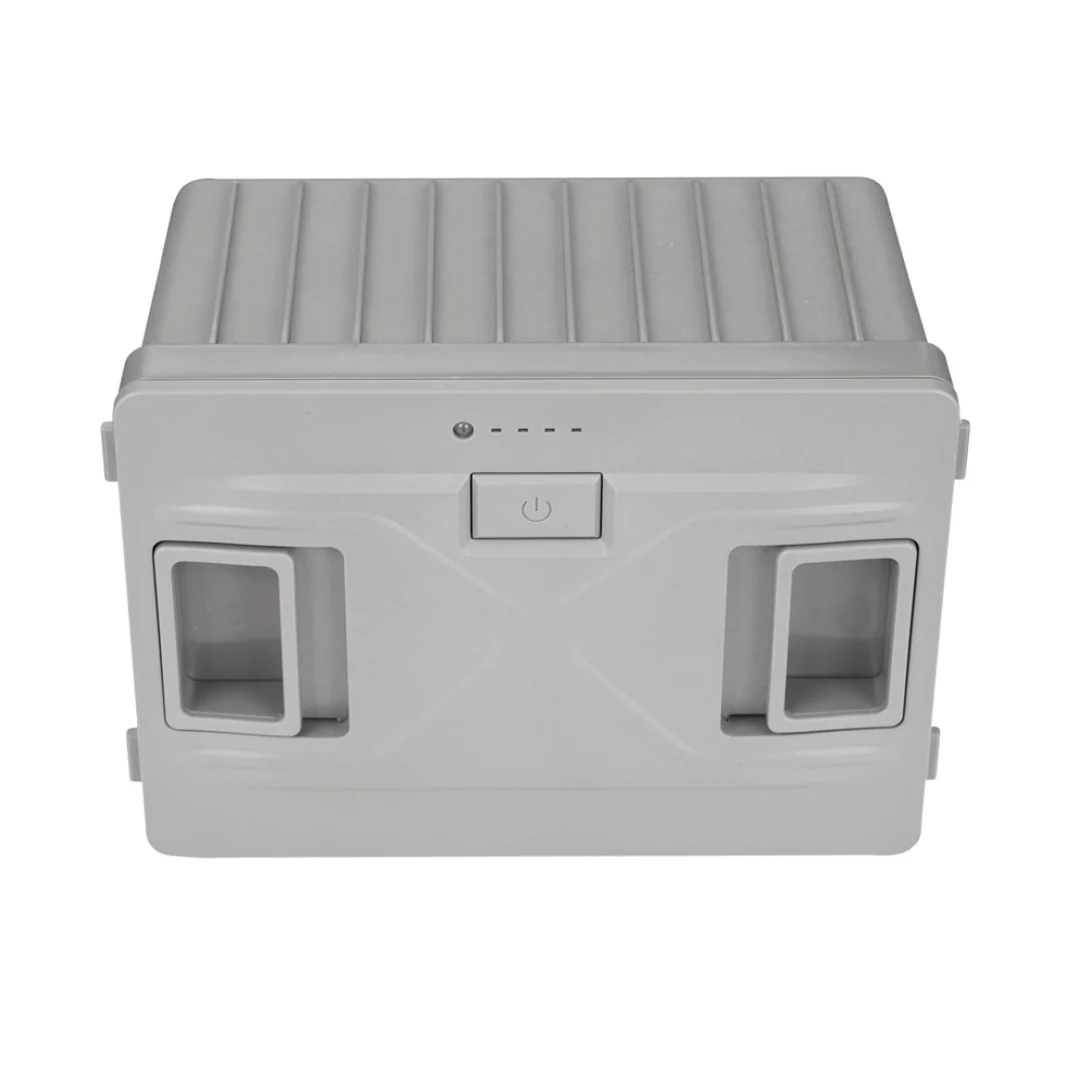

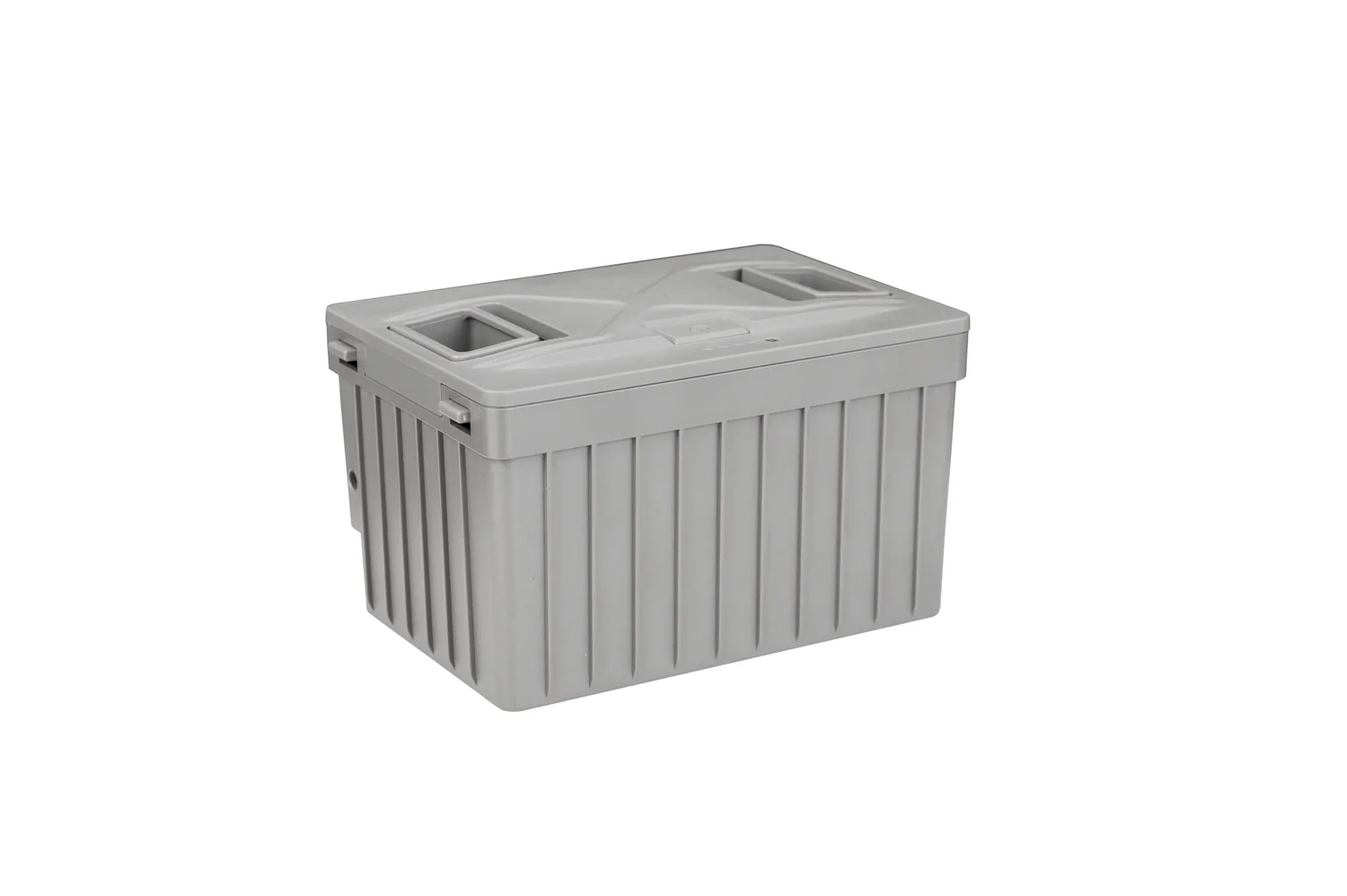

Alpicool Detachable Battery For P18 LGMP8 TA/TAW/TW/TWW/MT/TS/ECX Series

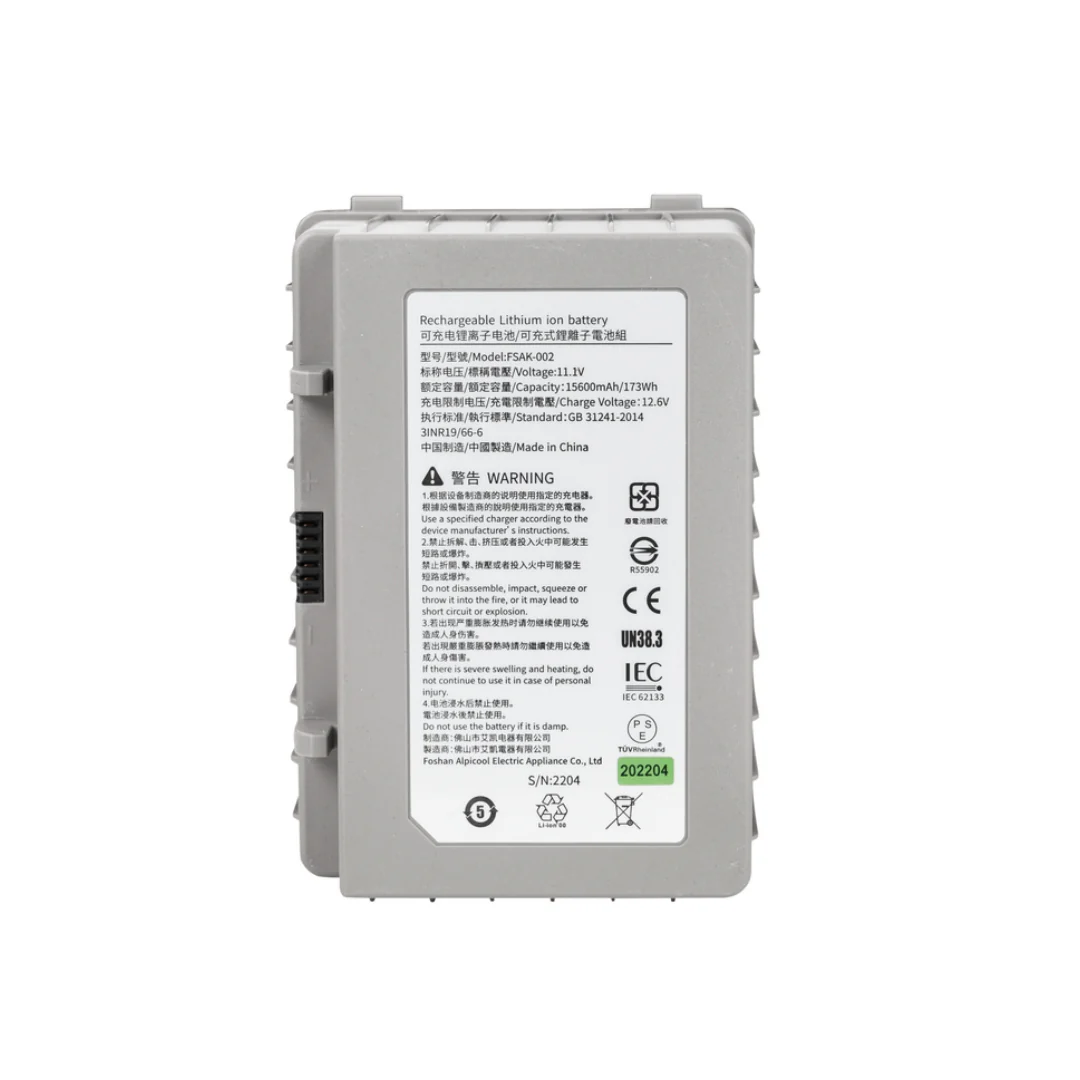

Model: FSAK-002, FSAK-004C

Capacity: 15600mAh

Applicable Alpicool refrigerators: P18, TA35/45/55, TAW35/45/55, TW35/45/55, TWW35/45/55, MT25/MT35, TS40/TS50/TS60, LGMP8, Y15E/Y19E, UD65, ECX30/ECX40/ECX50, EC15/EC20

Discharging time (for reference only): In the low battery protection mode, the battery can last about 4 hours after being fully charged. When the temperature of the refrigerator is set between 2~8℃ (ambient temperature 25℃), it can last 12 hours after the internal temperature stabilizes. Remove or switch off the battery to prevent self-discharge when not in use.

*Note:
1. lt is suggested to switch off the refrigerator when charging the battery (the power supply may mainly power the compressor when the refrigerator is running).
2. When connect to a solar panel, please place the refrigerator in a cool place to dissipate heat. The charging input power should be higher than the working power of the refrigerator(about 40-45W), or switch off the refrigerator, otherwise the battery will run out. lt is suggested to use 100W solar panel. MAX Solar Input Voltage: 50V; MAX Solar Input Current:10A.
3. The output of the solar panel is unstable, so it cannot power the refrigerator directly. When using a solar panel, the battery should be put into the refrigerator.
4. The old model battery has a DC charging port on the side, the new model batterydoes not have DC charging port.
